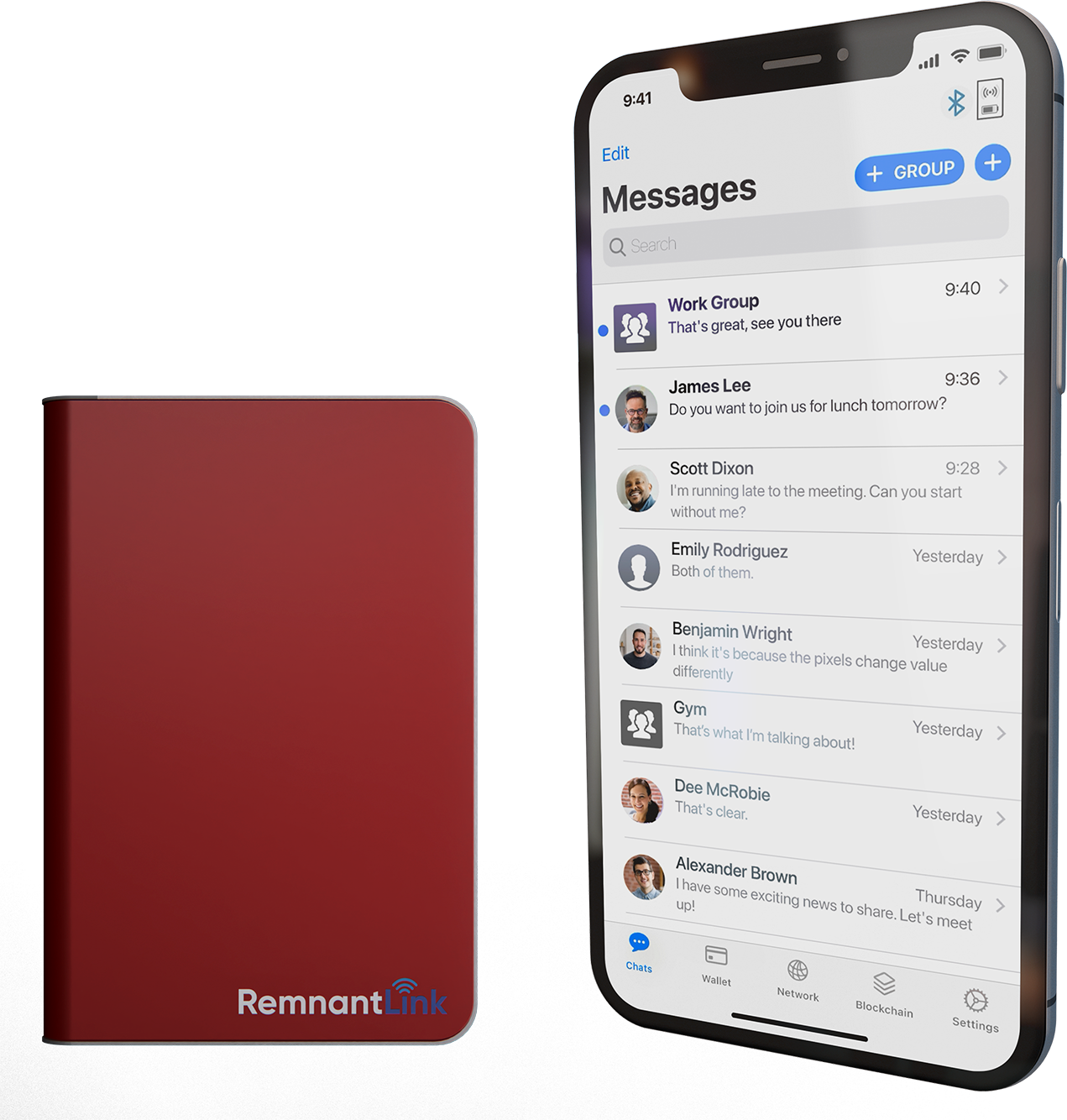

The RemnantLink Connect pairs with your smartphone, and keeps you connected to your friends and family.
Features
RemnantLink Connect
The RemnantLink Connect provides the core access to the RemnantLink mesh network. The RemnantLink Connect was designed to offer the easiest to use, lowest cost access to the RemnantLink services while offering balanced all round performance.
The devices is designed around an internal tuned antenna to give the best overall performance. An external antenna connector allows for improved performance where needed.
Built in Bluetooth connects to the RemnantLink smartphone app to enabled all of the remnant link services
![](https://www.remnantlink.com/wp-content/uploads/2023/04/Multiple-Devices.png)
RemnantLink Connect Overview

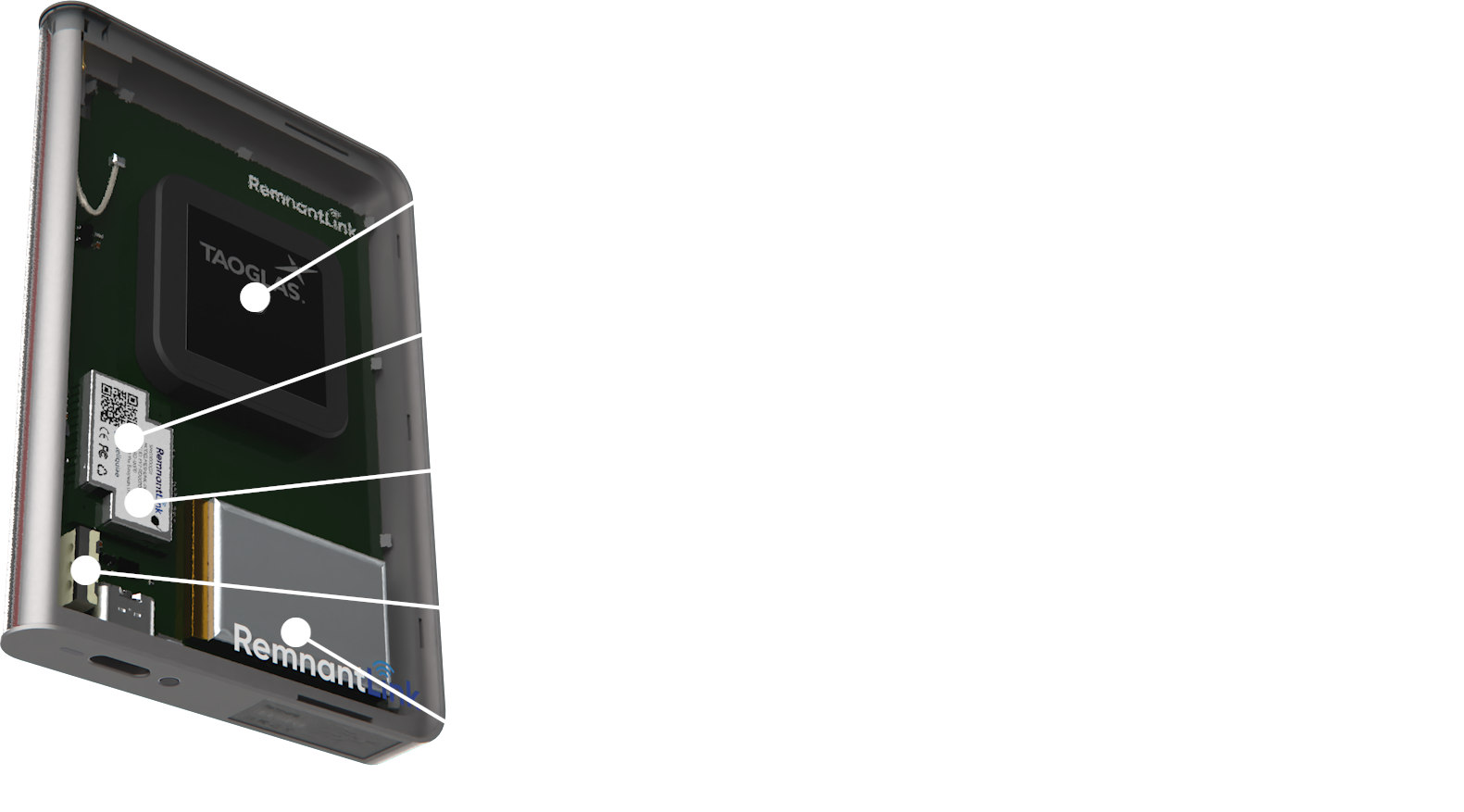

Hardware Features
![](https://www.remnantlink.com/wp-content/uploads/2023/04/ConnectSpecs.png)
Specifications
General
-

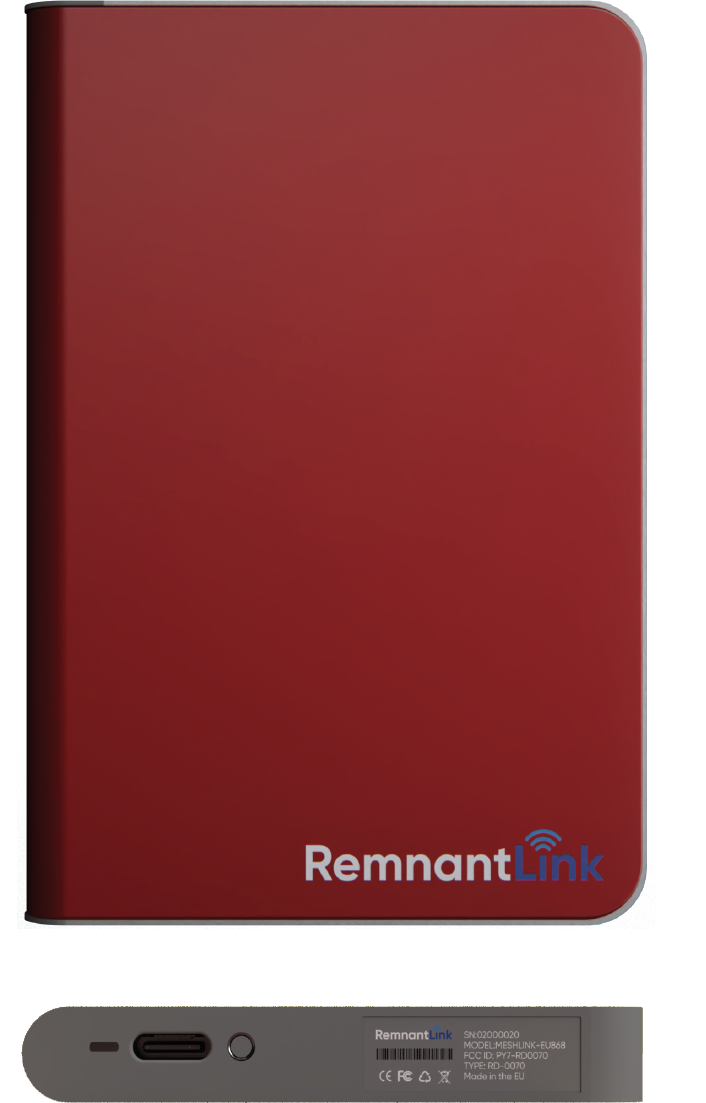

Size:
Height: 10cm - 3.9"
Width: 7cm - 2.7"
Depth: 0.8cm - 0.3" - Weight: 60 grams - 2.1 oz
Battery
- Battery: 300mah 3.7v Lithium Polymer
- Battery Life (Standby): 1-2 days
- Charge Time: 2 Hours
- Charger: USB-C
Radio
- Bluetooth LE 5.0
- Transmitter: 0.1 W - 20 dBm upto 3.0 W - 34 dBm *
-
Frequency:
800Mhz - 890Mhz CE
900Mhz - 980Mhz FCC/IC
- Transmission output is limited on free-to-air frequencies by local law and regulations. The limit may increase, subject to RemnantLink obtaining a dedicated frequency license in each region where possible. Transmission power can be increased to 3W using the in-app option, if the operator has a HAM radio license.
![](https://www.remnantlink.com/wp-content/uploads/2023/04/Dimensions.png)

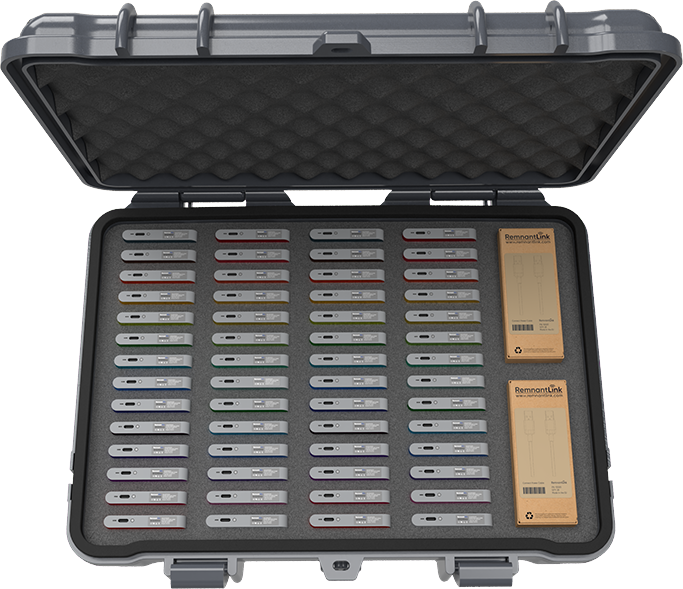

Available in a community case
RemnantLink connect devices are available as a community pack of 56 devices.

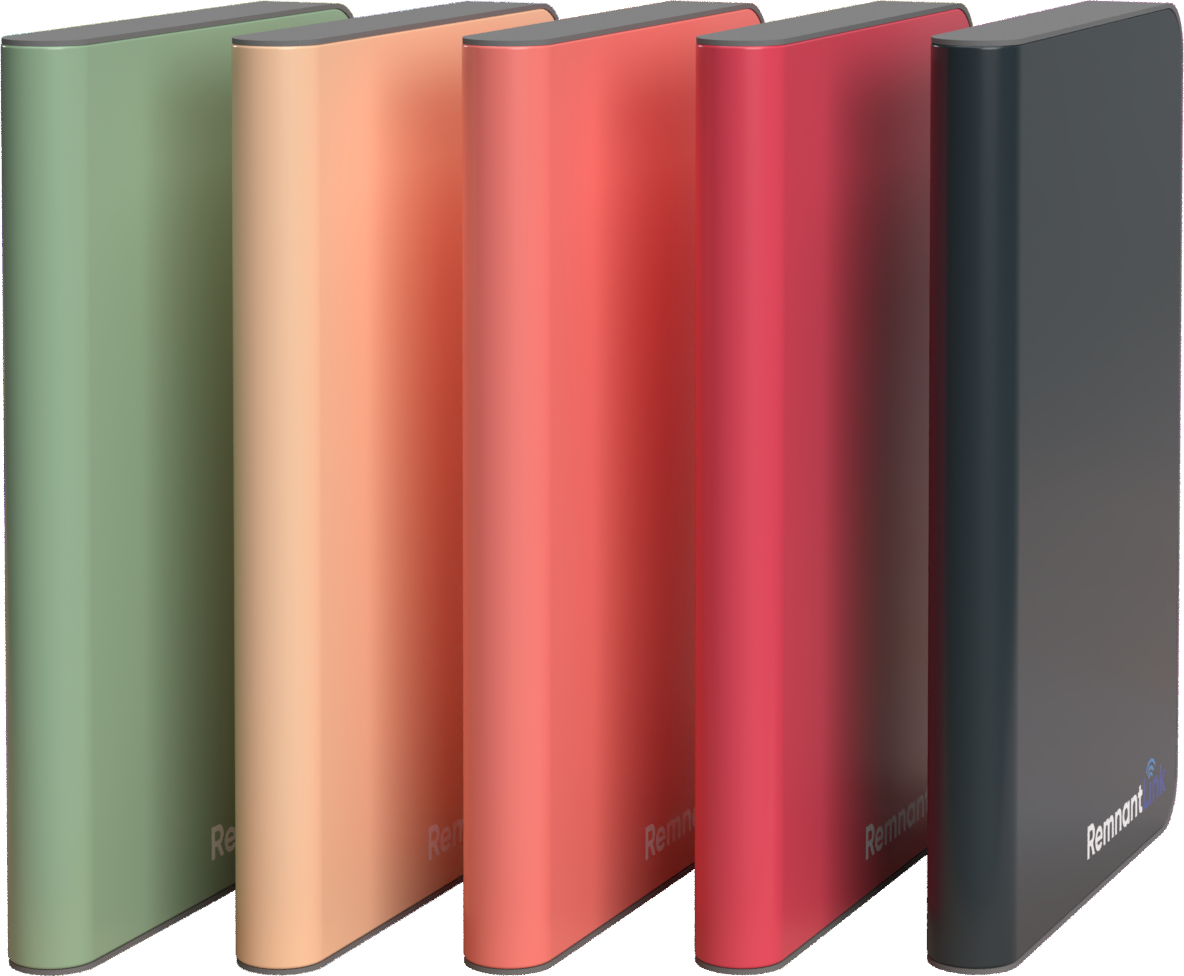

the connect devices have multiple color combinations to make it easier to identify which device is yours.
Connect your group or community to RemnantLink and be ready for anything.
![](https://www.remnantlink.com/wp-content/uploads/2023/04/CaseOfMeshLink.png)
